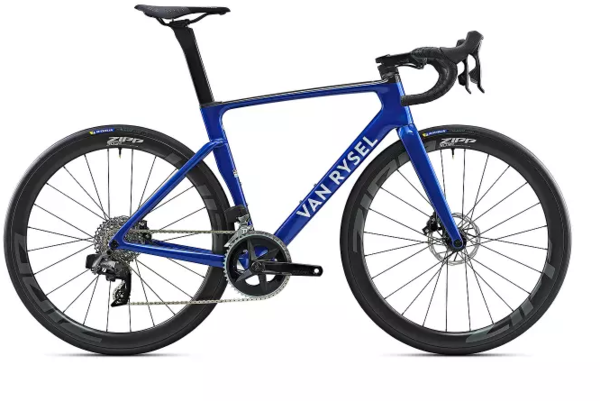

Van Rysel RCR Rival AXS V1

A Closer Look at the Frame
The RCR frame weight (size M, painted): 1.83 lbs (830 g)
RCR fork weight (size M, painted): 0.84 lbs (380 g)
Tire clearance: Up to 33 mm
Color variations may cause slight weight differences (+/- 0.11 lbs | 50 g)

Never clamp a carbon frame (top tube, seat tube, down tube) in a work stand or bike rack—carbon is rigid but vulnerable to compression.

Cockpit
The RCR’s cockpit is designed for precise handling and easy maintenance, with an integrated headset that ensures smooth steering. The DEDA x Van Rysel Superbox EVO stem is both lightweight and stiff.

Stem lengths:

XS: 80 mm
S: 90 mm
M: 100 mm
L: 110 mm
XL: 120 mm
Paired with the DEDA Superzero RS carbon handlebar, it delivers aerodynamic efficiency and comfort. Deda measures width from the bar ends, meaning a 400 mm handlebar (measured between axles) is labeled as 420 mm.

Handlebar widths (measured between axles):

XS/S: 400 mm
M/L: 420 mm
XL: 440 mm
SRAM Rival Groupset & Quarq Power Meter

The RCR features the SRAM Rival eTap AXS groupset with a Quarq power meter for precise training. The electronic drivetrain runs on two separate batteries, with full customization and ride data available via the SRAM app.

Total drivetrain weight: 6.7 lbs (3045g)

SRAM Rival Drivetrain

The RCR is equipped with the SRAM Rival eTap AXS D1 groupset, delivering smooth, wireless shifting and seamless compatibility with Force components.

Shifter: Rival eTap AXS D1
Front derailleur: Rival eTap AXS D1
Rear derailleur: Rival eTap AXS D1 (max 36T)
Cassette: Rival XG 1250 D1, 10-36T
CrankSet: Rival D1 DUB PM, 48/35T
Chain: SRAM Rival
Crank length by size:

XS/S: 170mm
M: 172.5mm
L: 175mm

Disc Brakes
The SRAM Rival hydraulic disc brakes deliver powerful, progressive braking for optimal control. Featuring a 160mm front rotor and 140mm rear rotor, they outperform cable-actuated systems in all conditions.

Zipp 303S wheels

The Zipp 303S is a 100% carbon, tubeless-ready, hookless wheelset designed for versatility and speed. With a 45mm profile, it excels across all terrains. The 23mm internal width optimizes performance with 28mm tires.

Max pressure: 29-73 psi (2-5 bar)
Weight (pair): 3.37 lbs (1530g)

Michelin Power Cup Black Tire

Boost your confidence with the Michelin Power Cup road tire, designed for both racing and training. Used by the Cofidis team, it draws inspiration from MotoGP technology for top-tier speed and performance.

Lightweight and reliable, it features Michelin Aramid Shield technology and a 3 x 120 TPI carcass for durability. The Michelin GUM-X compound ensures excellent grip and stability on both dry and wet roads.

Size: 700x28
Recommended pressure: 44–73 psi (3–5 bar)
Weight: 8.5 oz (240 g)

Position
RCR Carbon Seatpost features a -15mm offset for an aggressive riding position.

Seat Post Length by Size:

XS: 316 mm
S: 331 mm
M: 356 mm
L/XL: 406 mm
The 140mm Decathlon Road Light saddle features a short-nose design for enhanced stability and pressure relief in the soft tissue area.

Weight: 8.8 oz (250g)

Pedals
Sold without pedals.

Which Size?
Refer to the bike frame geometry table for precise sizing.

Smaller size: More responsive and agile
Larger size: Better comfort for long distances
If you're between sizes, choose based on your riding style and fit preference. For best results, we recommend a professional bike fit.

Important / Safety
Zipp wheels use a hookless rim design, meaning there’s no hook to hold the tire in place—air pressure secures it to the rim.

WARNING:
Always follow Zipp’s maximum pressure limit. Never exceed 73 psi (5 bar), or you risk tire failure.

Warranty

Frame & Fork: 5 years
Parts: 2 years (excluding wear items)
Product Disclaimer

Specifications and features may change without notice. We strive for accuracy but cannot guarantee all descriptions, images, or details are error-free. Variations do not warrant modifications, exchanges, or refunds. Products may be updated or discontinued at any time. For more info, contact customer support.
